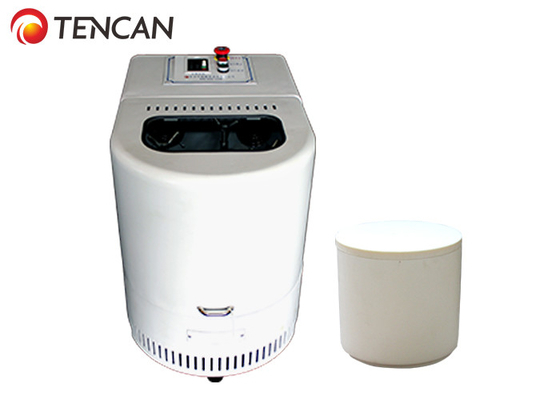

Tencan 10L Vertical Planetary Ball Mill 220V Precision Grinding System for Laboratory Industrial and Research Applications
Detalhes do produto:
| Lugar de origem: | Hunan, China |
| Marca: | TENCAN |
| Certificação: | ISO CE |
| Número do modelo: | XQM-10 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 conjunto |
|---|---|
| Preço: | Negociável |
| Detalhes da embalagem: | Carton+espuma |
| Tempo de entrega: | 3-7 dias de trabalho após o pagamento integral |
| Termos de pagamento: | T/T, Western Union |
| Habilidade da fonte: | 300 conjuntos por mês |
|
Informação detalhada |
|||
| Nome do portão: | Formamento quadrado de bolas de laboratório vertical | Modelo no.: | XQM-10 |
|---|---|---|---|
| Volume total: | 10L | Capacidade máxima: | 3.3L |
| Gire a velocidade: | 70-580 rpm | Controle de velocidade: | Controle de frequência |
| Tensão: | 220V-50Hz ； 110V-60Hz | Poder: | 1.5kW |
| Destacar: | 10L vertical planetary ball mill,laboratory ball mill with 220V,precision grinding system for research |
||
Descrição de produto
Tencan 10L Vertical Planetary Ball Mill 220V Precision Grinding System for Laboratory Industrial and Research Applications
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤3mm |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | /1/2 |
| Max.Continuous Operating Time | 72hours |
| Materials of Jar | stainless steel.agate,nylon,corundum,zirconia,etc |
Technical Parameters
| Main Parameters of Vertical Planetary Mill Ball (SquareType) | |||||
| Model | Power(KW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
RotationSpeed (rpm) |
| XQM-1 | 0.75 | 220V-50Hz | 750*470*564 | 35-325 | 70-670 |
| XQM-2 | 0.75 | 220V-50Hz | 750*470*564 | 35-335 | 70-670 |
| XQM-4 | 0.75 | 220V-50Hz | 750*470*564 | 35-335 | 70-670 |
| XQM-6 | 0.75 | 220V-50Hz | 750*470*564 | 35-335 | 70-670 |
| XQM-8 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
| XQM-10 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
Accessories of Grinding Pots & Balls
Available grinding pots in full sizes:
Stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc.
| References for Matchable Jar Sizes with Square Shape Planetary Ball Mill | ||||
| Model No. | Total Volume (L) |
Matchable Jar Sizes |
Matchable Jars Quantity |
Matchable Vacuum Jar Sizes |
| XQM-2 | 2.0L | 50-500ml | 2pcs or 4pcs | 50-250ml |
| XQM-4 | 4.0L | 250-1000ml | 2pcs or 4pcs | 50-1000ml |
| XQM-6 | 6.0L | 1-1.5L | 2pcs or 4pcs | 50-1000ml |
| XQM-8 | 8.0L | 1-2L | 2pcs or 4pcs | 50-1500ml |
| XQM-10 | 10L | 1-2.5L | 2pcs or 4pcs | 1-2L |
| XQM-12 | 12L | 1-3L | 2pcs or 4pcs | 1-2L |
| XQM-20 | 20L | 2-5L | 2pcs or 4pcs | 2-4L |
| XQM-40 | 40L | 5-10L | 2pcs or 4pcs | 5L |
| XQM-60 | 60L | 10-15L | 2pcs or 4pcs | 10L |
| XQM-100 | 100L | 20-25L | 2pcs or 4pcs | 20L |
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
Available grinding balls in full sizes
Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, cemented carbide, crystal glass and other special metal materials.
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
