Laboratory 1100C 1200C 1400C 1500C 1600C 1800C Degree Electric Box / Muffle Furnace Price for High Temperature

Detalhes do produto:

Lugar de origem: China
Marca: TENCAN
Certificação: CE

Condições de Pagamento e Envio:

Quantidade de ordem mínima: 1
Tempo de entrega: 7~15
Termos de pagamento: L/C,D/A,D/P,T/T,Western Union
Melhor preço Contato

Informação detalhada
Tipo de produto: Forno tipo caixa de laboratório Temperatura máxima: 1200~1800°C
Volume da câmara: 1L~729L, personalizável elemento de aquecimento: Resistência Aquecimento do fio
Controle de temperatura: Controle PID programável de 50 segmentos forro de fornalha: Fibra de Mulita Policristalina
Projeto refrigerando: Shell de camada dupla com resfriamento por ventilador Proteção de segurança: Proteção de alarme de superaquecimento
Aplicativo: Sinterização, Fusão e Análise de Materiais
Destacar:

High Temperature Electric Box Muffle Furnace

,

Laboratory Electric Box Muffle Furnace

,

1800C Electric Box Muffle Furnace

Descrição de produto

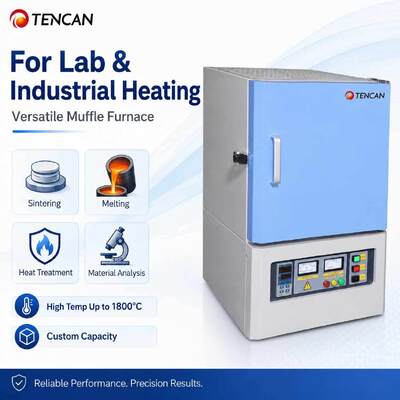

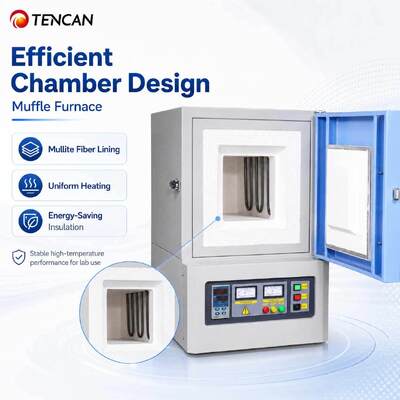

A Muffle Furnace, also known as a box-type resistance furnace or high-temperature furnace, is an enclosed heat treatment system heated by electric heating elements. Its key feature is an independent heating chamber, commonly referred to as the muffle chamber, which allows materials to be heated, sintered, ashed, or heat-treated in a controlled environment while preventing direct contact with the heating elements and reducing the risk of contamination. From laboratory materials research to industrial heat treatment production, muffle furnaces are widely used in materials science, chemical analysis, ceramic processing, metal heat treatment, and other high-temperature applications. With precise temperature control, uniform heat distribution, and reliable safety performance, they have become essential equipment for both research and production environments. This box furnace adopts a polycrystalline mullite fiber chamber, which features low thermal conductivity, high structural strength, and excellent heat insulation performance for improved energy efficiency. The furnace roof is designed with a reinforced composite structure to prevent collapse during long-term high-temperature operation. This series of box furnaces is specially developed for universities, research institutes, laboratories, and industrial enterprises. It is suitable for the sintering, melting, analysis, and heat treatment of metals, non-metals, and various compound materials.

Laboratory 1100C 1200C 1400C 1500C 1600C 1800C Degree Electric Box / Muffle Furnace Price for High Temperature 0Laboratory 1100C 1200C 1400C 1500C 1600C 1800C Degree Electric Box / Muffle Furnace Price for High Temperature 1Laboratory 1100C 1200C 1400C 1500C 1600C 1800C Degree Electric Box / Muffle Furnace Price for High Temperature 2Laboratory 1100C 1200C 1400C 1500C 1600C 1800C Degree Electric Box / Muffle Furnace Price for High Temperature 3Laboratory 1100C 1200C 1400C 1500C 1600C 1800C Degree Electric Box / Muffle Furnace Price for High Temperature 4Laboratory 1100C 1200C 1400C 1500C 1600C 1800C Degree Electric Box / Muffle Furnace Price for High Temperature 5Laboratory 1100C 1200C 1400C 1500C 1600C 1800C Degree Electric Box / Muffle Furnace Price for High Temperature 6Laboratory 1100C 1200C 1400C 1500C 1600C 1800C Degree Electric Box / Muffle Furnace Price for High Temperature 7

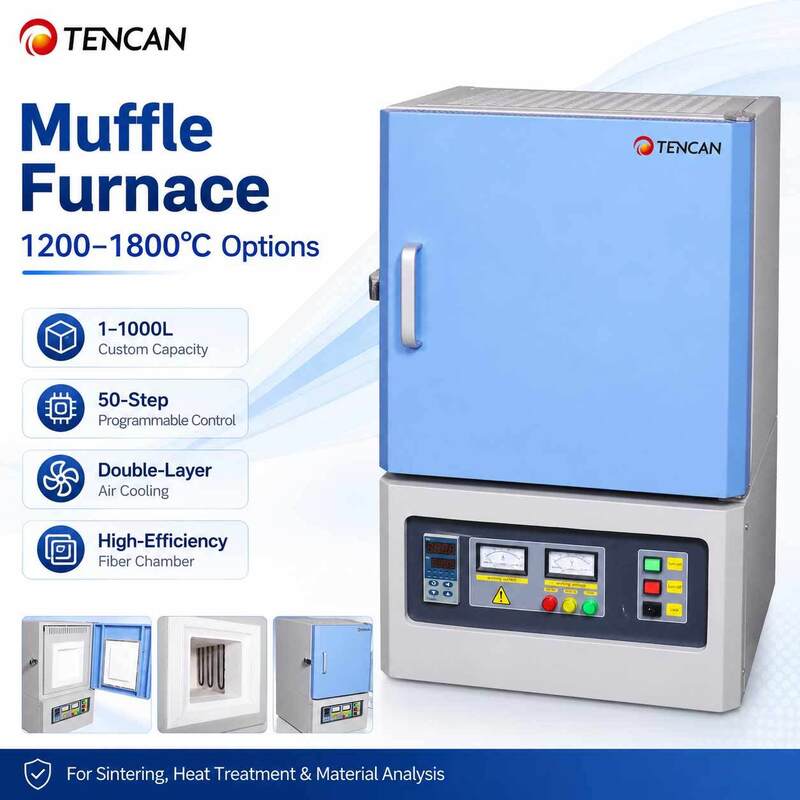

Product Features

  • Maximum temperature range: room temperature to 1800°C.

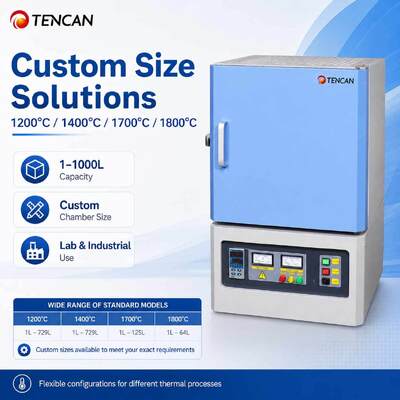

  • Available chamber capacities from 1 L to 1000 L.
  • Heating element options include FeCrAl resistance wire, U-shaped silicon carbide heating elements, and U-shaped molybdenum disilicide heating elements.
  • Customizable top-opening or side-opening door design helps keep operators away from direct heat exposure.

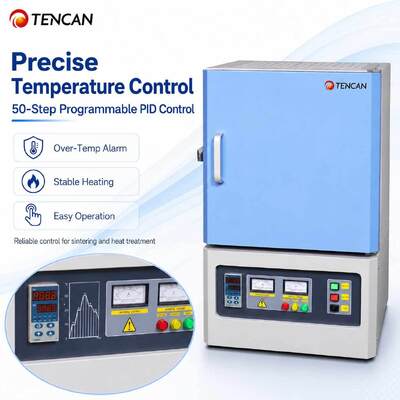

  • Intelligent 50-segment programmable automatic temperature control.
  • Built-in over-temperature alarm for safer operation.

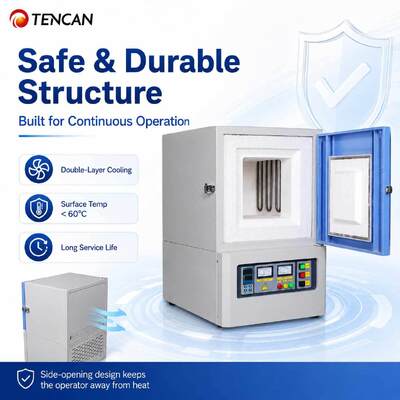

  • Double-layer air-cooling structure with cooling fans helps keep the outer shell temperature below 60°C.

1200°C Box Furnace Technical Specifications

Model Max. Temperature
 Working Temperature
 Chamber Size
 mm		 Volume
 Power
 Phase Thermocouple Type
TC-12N-1 1200 1100 100×100×100 1 0.8 1 Type K
TC-12N-3 1200 1100 150×150×150 3 2.5 1 Type K
TC-12N-8 1200 1100 200×200×200 8 5 1 Type K
TC-12N-12 1200 1100 200×200×300 12 6 1 Type K
TC-12N-36 1200 1100 300×300×400 36 10 3 Type K
TC-12N-64 1200 1100 400×400×400 64 16 3 Type K
TC-12N-125 1200 1100 500×500×500 125 25 3 Type K
TC-12N-216 1200 1100 600×600×600 216 36 3 Type K
TC-12N-512 1200 1100 800×800×800 512 64 3 Type K
TC-12N-729 1200 1100 900×900×900 729 80 3 Type K


1400°C Box Furnace Technical Specifications

Model Max. Temperature
 Working Temperature
 Chamber Size
 mm		 Volume
 Power
 Phase Thermocouple Type
TC-14S-1 1400 1300 100×100×100 1 1 1 Type S
TC-14S-3 1400 1300 150×150×150 3 3 1 Type S
TC-14S-8 1400 1300 200×200×200 8 5 1 Type S
TC-14S-12 1400 1300 200×200×300 12 7 1 Type S
TC-14S-36 1400 1300 300×300×400 36 11 3 Type S
TC-14S-64 1400 1300 400×400×400 64 18 3 Type S
TC-14S-125 1400 1300 500×500×500 125 27 3 Type S
TC-14S-216 1400 1300 600×600×600 216 40 3 Type S
TC-14S-512 1400 1300 800×800×800 512 70 3 Type S
TC-14S-729 1400 1300 900×900×900 729 88 3 Type S

1700°C Box Furnace Technical Specifications

Model Max. Temperature
 Working Temperature
 Chamber Size
 mm		 Volume
 Power
 Phase Thermocouple Type
TC-17M-1 1700 1600 100×100×100 1 1 1 Type B
TC-17M-3 1700 1600 150×150×150 3 4 1 Type B
TC-17M-8 1700 1600 200×200×200 8 7 1 Type B
TC-17M-12 1700 1600 200×200×300 12 8 1 Type B
TC-17M-36 1700 1600 300×300×400 36 12 3 Type B
TC-17M-64 1700 1600 400×400×400 64 20 3 Type B
TC-17M-125 1700 1600 500×500×500 125 30 3 Type B
TC-17M-216 1700 1600 600×600×600 216 45 3 Type B
TC-17M-512 1700 1600 800×800×800 512 80 3 Type B
TC-17M-729 1700 1600 900×900×900 729 96 3 Type B

1800°C Box Furnace Technical Specifications

Model Max. Temperature
 Working Temperature
 Chamber Size
 mm		 Volume
 Power
 Phase Thermocouple Type
TC-18HM-1 1800 1700 100×100×100 1 2 1 Type B
TC-18HM-3 1800 1700 150×150×150 3 6 1 Type B
TC-18HM-8 1800 1700 200×200×200 8 8 1 Type B
TC-18HM-12 1800 1700 200×200×300 12 9 1 Type B
TC-18HM-36 1800 1700 300×300×400 36 15 3 Type B
TC-18HM-64 1800 1700 400×400×400 64 25 3 Type B
TC-18HM-125 1800 1700 500×500×500 125 35 3 Type B
TC-18HM-216 1800 1700 600×600×600 216 50 3 Type B

Note: The above specifications are standard models. Custom chamber sizes and configurations are available upon request.


Related Accessories

Standard Accessories

  • Furnace door insulation brick
  • High-temperature gloves
  • Crucible tongs
  • User manual
  • Spare heating elements for 1400°C and 1700°C models

Optional Accessories

  • HD touchscreen controller
  • Exhaust port
  • Observation window
  • Multi-layer kiln furniture
  • Alumina crucible
  • Communication software
